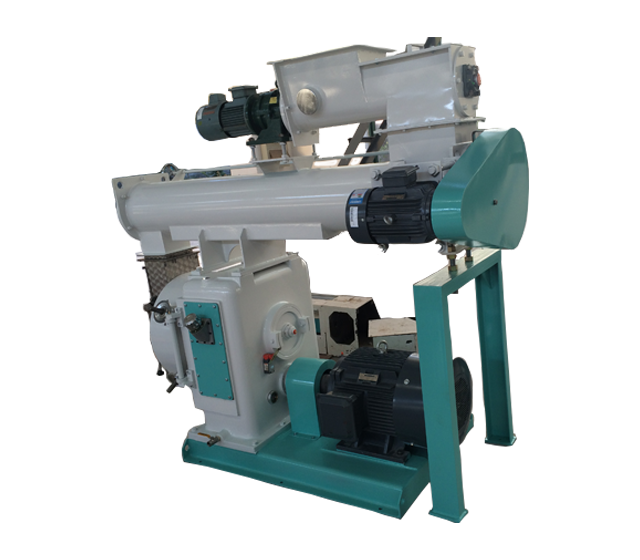

32 Granulator
The main business scope includes: feed machinery production line, fertilizer machinery production line, Mannheim Potassium sulfate production line, rare metal refining production line
Category:Granulator
Keywords: pulverizer | batcher | mixer
Product Features:
1, Efficient one-stage gear transmission ensures the maximum transfer of energy;
2, All stainless steel feeder, variable pitch anti-arching mechanism, using electromagnetic speed control;
3, Stainless steel tempering device, the use of axial steam feed, greatly improving the tempering and maturing time and effect;
4, High-precision transmission gears and gear shafts using carburising quenching, smooth transmission, low noise, long life;
5, The material of gear box and the high precision of transmission hole come from the casting technology of professional foundry and the guarantee of CNC machining equipment.
Main technical and performance parameters:
| Model | Production capacity(t/h) | Host power(kw) | Conditioner power(kw) | Feeder power(kw) | Ring mould inner diameter(mm) | Pellet size (mm) |
| SZLH250 | 1-2 | 18.5 | 1.1 | 0.55 | φ250 | φ2-18 |
| SZLH320 | 2-5 | 37 | 2.2 | 0.55/0.75 | φ320 | φ2-18 |
