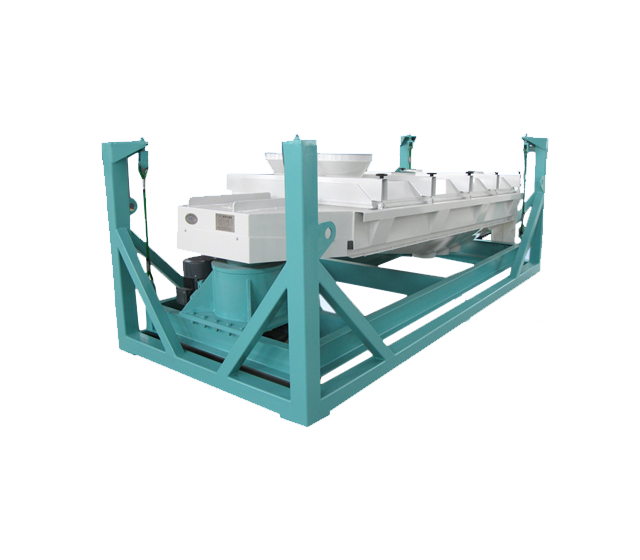

130 type classification sieve
The main business scope includes: feed machinery production line, fertilizer machinery production line, Mannheim Potassium sulfate production line, rare metal refining production line
Category:Finished product sieve series
Keywords: pulverizer | batcher | mixer
Product Features:
1、Applicable to the grading and secondary cycle crushing process of granular materials, crushed materials, as well as the cleaning and grading process of some granular and powder materials. The use of triangular belt-driven bias balance mechanism and flexible tail support mechanism, the material in the horizontal rotary body work surface for rotary motion, high screening accuracy, small vibration.
2、No oil lubrication is needed, avoiding oil leakage.
3、The internal streamline design of the discharge port does not make the material deposited, avoiding cross-contamination.
4、Pressure sieve mechanism is firm and quick to change the sieve.
5、Two-deck sieve, three-deck sieve and two-deck sieve double feeding can be customised according to the needs.
Main technical and performance parameters:
| Model | Force(kw) | Throughput（t/h） | ||
| Powder | Granulate | |||
| 1C series | SFJH80×1C | 1.5 | 3-5 | 5-8 |
| SFJH110×1C | 2.2 | 6-8 | 8-10 | |
| SFJH130×1C | 4 | 9-13 | 12-16 | |
| SFJH140×1C | 5.5 | 12-16 | 14-20 | |
| SFJH150×1C | 7.5 | 14-18 | 16-22 | |
| SFJH1600×1C | 11 | 18-20 | 20-24 | |
| 2C series | SFJH80×2C | 1.5 | 3-5 | 5-8 |
| SFJH110×2C | 2.2 | 6-8 | 8-10 | |
| SFJH130×2C | 4 | 9-13 | 12-16 | |
| SFJH140×2C | 5.5 | 12-16 | 14-20 | |
| SFJH150×2C | 7.5 | 14-18 | 16-22 | |
| SFJH160×2C | 11 | 18-20 | 20-24 | |
| 3C series | SFJH80×3C | 1.5 | 3-5 | 5-8 |
| SFJH110×3C | 2.2 | 6-8 | 8-10 | |
| SFJH130×3C | 4 | 9-13 | 12-16 | |
| SFJH140×3C | 5.5 | 12-16 | 14-20 | |
| SFJH150×3C | 7.5 | 14-18 | 16-22 | |
| SFJH160×3C | 11 | 18-20 | 20-24 | |
