Products

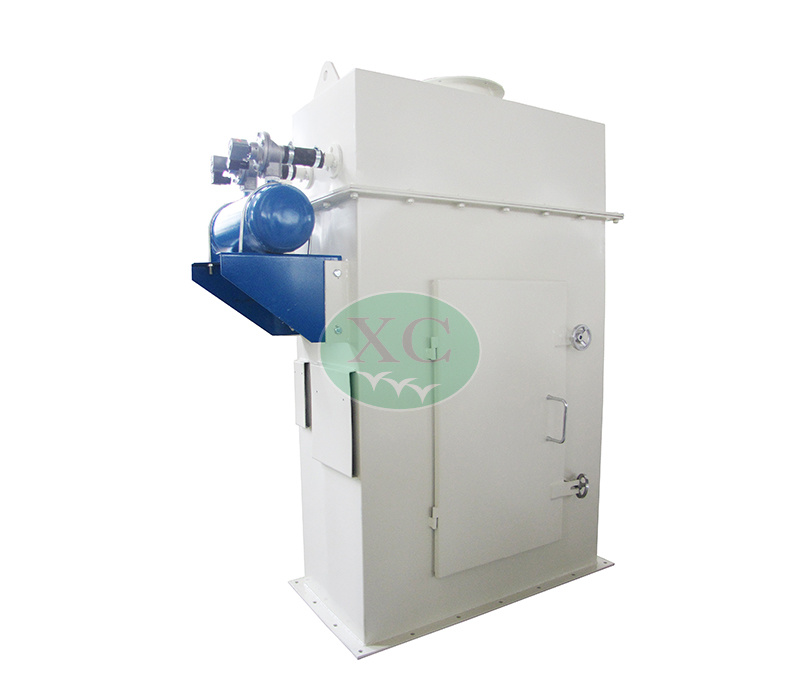

Pulselet
The main business scope includes: feed machinery production line, fertilizer machinery production line, Mannheim Potassium sulfate production line, rare metal refining production line
Category:Pulse dust collector
Keywords: pulverizer | batcher | mixer
Product Features:
1、Widely used in grain, feed industry, feeding mouth, crusher discharge, elevator import and export, weighing and baling machine single or centralised suction dust removal, can effectively reduce the workshop dust;
2、The cloth belt bracket is connected by threaded valve port, which is easy to dismantle;
3, the use of special air bag and solenoid valve direct connection, stable and reliable work, the main components are imported, good sealing performance;
4、Large filtering area, high dust removal efficiency (≥99.9%).
Main technical and performance parameters:
| Model | TBLMFa6 | TBLMFa10 | TBLMFa12 | TBLMFa15 | TBLMFa21 | TBLMFa28 | TBLMFa32 | TBLMFa40 | TBLMFa48 | TBLMFa56 |
| Air volume(m³/h) | 480-600 | 800-1200 | 1200-2700 | 1900-2700 | 3200-450 | 3780-6300 | 5600-8400 | 8400-12000 | 9000-15000 | 10000-18000 |
| Filter area(m²) | 2.8 | 3.4 | 4.5 | 8.4 | 11.8 | 15.8 | 24.1 | 30.1 | 40 | 50 |
| Number of bags | 6 | 10 | 12 | 15 | 21 | 28 | 32 | 40 | 48 | 56 |
| Bag Diameter(mm) | 120 | |||||||||
| Length of bag(mm) | 1500/2000 | |||||||||
| Bag Material | Polyester material, polyethylene, co-polypropylene, polyester (three-proof cloth bag, waterproof, oil-proof, anti-static) | |||||||||
| Continuous temperature of the bag | 40º 90º 115º 125º 150º | |||||||||
| Bag installation method | Stainless steel hoop installation | |||||||||
| Keel Material | Colour plated/stainless steel keel | |||||||||
