Cylinder Pulse
The main business scope includes: feed machinery production line, fertilizer machinery production line, Mannheim Potassium sulfate production line, rare metal refining production line
Category:Pulse dust collector
Keywords: pulverizer | batcher | mixer

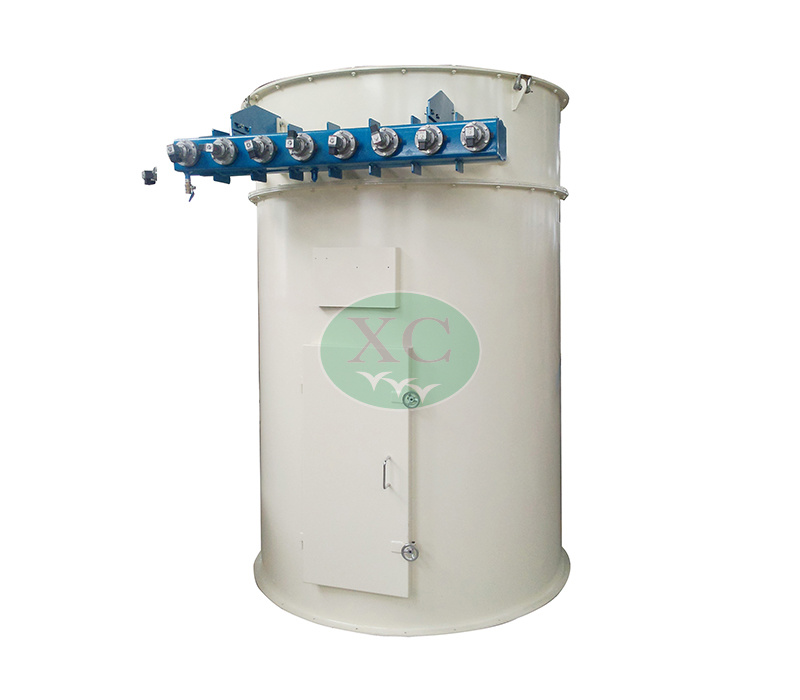

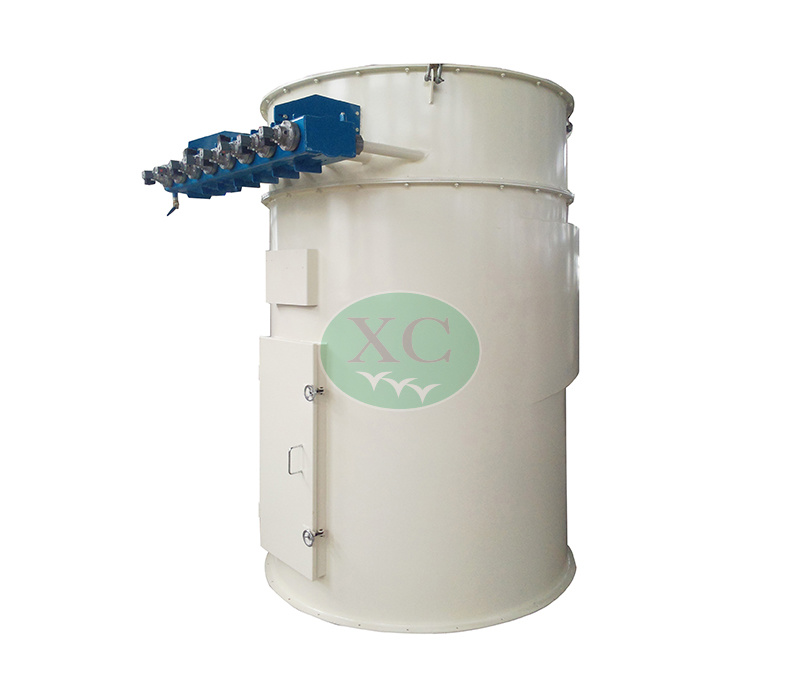

Cylinder Pulse
Product Features:
1、The box body adopts cylinder type, which increases the rigidity and strength of the box body;
2、The use of tangential centrifugal feeding is conducive to reducing the resistance of the equipment and reducing the load on the filter belt;
3、High processing air volume, small footprint, low equipment noise.
Main technical and performance parameters:
| Model | TBLMy12 | TBLMy18 | TBLMy26 | TBLMy39 | TBLMy52 | TBLMy78 | TBLMy104 | |||
| Matching Fans(kw) | 2.2 | 3 | 4 | 5.5 | 11/15 | 22/37 | 45/55 | |||
| Number of solenoid valves | 2 | 2 | 4 | 5 | 6 | 8 | 10 | |||
| Number of bags | 12 | 18 | 26 | 39 | 52 | 78 | 104 | |||
| Bag diameter(mm) | 120 | |||||||||
| Length of bag(mm) | 1500/2000 | |||||||||
| Material of bag | Polyester material, polyethylene, co-polypropylene, polyester (three-proof cloth bag, waterproof, oil-proof, anti-static) | |||||||||
| Continuous bag temperature | 40º 90º 115º 125º 150º | |||||||||
| Bag installation method | Stainless steel hoop installation | |||||||||
| Keel Material | Colour plated/stainless steel keel | |||||||||
